Characteristic:
Applications: Electric vehicles, Solar energy storage, Backup power systems, UPS systems, Power tools, Industrial equipment, Consumer electronics and more.
| Battery Type | LiFePO4 Battery |
|---|---|
| Rechargeable | Yes |
| Nominal Voltage | 3.2V |
| Capacity Range | 3Ah-280Ah |
| Continuous Discharge | 1C-10C |
| Cycle Life | 2000 cycles |
| HS Code | 8507600090 |
| Brand | iBest/iBest Power/OEM |
| Standard LiFePO4 Battery (Lithium Iron Phosphate Battery)-Cylindrical Steel Shell | |||||
| Model | Nominal Voltage | Nominal Capacity | Dimension | Max. Discharge Rate | Cycle Life |
| IFR18650E | 3.2V | 1200mAh | Ø18.1*H65.5mm | 1C | ≥2000 cycles |
| IFR18650E | 3.2V | 1400mAh | Ø18.1*H65.5mm | 1C | ≥2000 cycles |

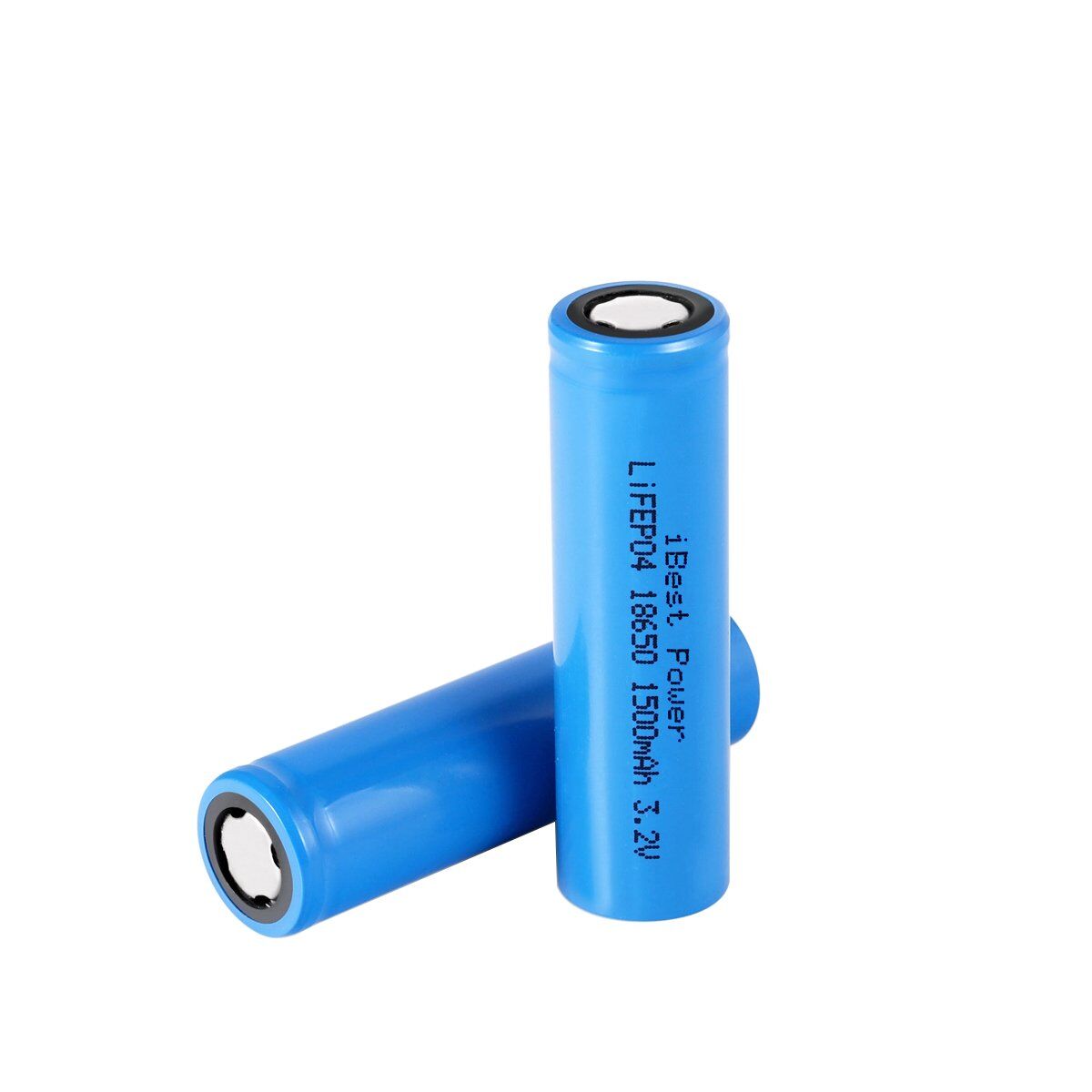

| IFR18650E | 3.2V | 1500mAh | Ø18.1*H65.5mm | 1C | ≥2000 cycles |
| IFR18650E | 3.2V | 1700mAh | Ø18.1*H65.5mm | 1C | ≥2000 cycles |

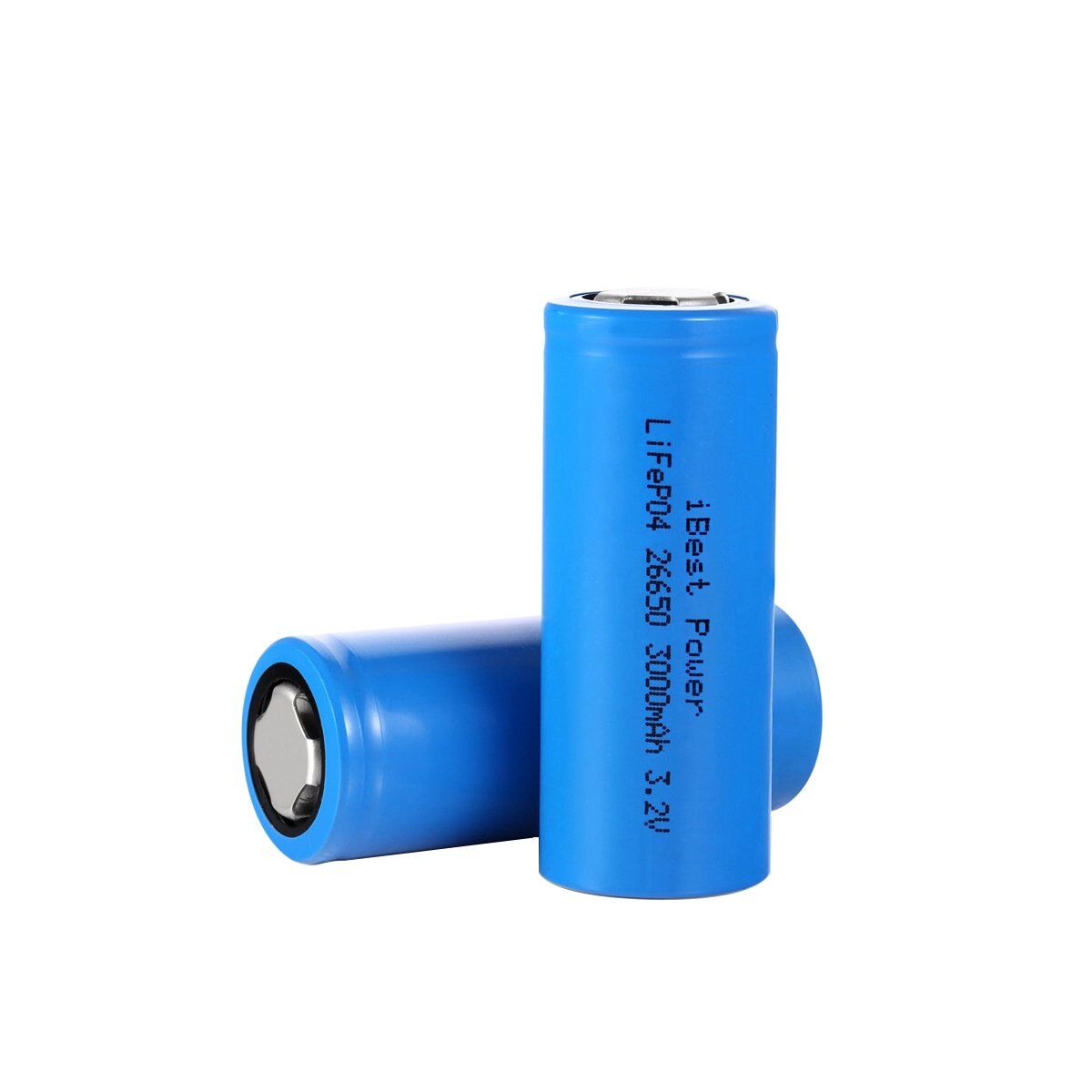

| IFR26650E | 3.2V | 3000mAh | Ø26.5*H65.3mm | 1C | ≥2000 cycles |
| IFR26650E | 3.2V | 3200mAh | Ø26.5*H65.3mm | 1C | ≥2000 cycles |
| IFR26650E | 3.2V | 3400mAh | Ø26.5*H65.3mm | 1C | ≥2000 cycles |
| IFR40135E | 3.2V | 20.0Ah | Ø40.5*H135.3mm | 1C | ≥2000 cycles |
| IFR46250E | 3.2V | 50.0Ah | Ø46.5*H250.3mm | 1C | ≥2000 cycles |
| Power Type LiFePO4 Battery (Lithium Iron Phosphate Battery)-Cylindrical Steel Shell | |||||
| Model | Nominal Voltage | Nominal Capacity | Dimension | Max. Discharge Rate | Cycle Life |
| IFR21700P | 3.2V | 2500mAh | Ø21.5*H70.3mm | 3C | ≥2000 cycles |
| IFR21700P | 3.2V | 3000mAh | Ø21.5*H70.3mm | 3C | ≥2000 cycles |
| IFR26650P | 3.2V | 3000mAh | Ø26.5*H65.3mm | 10C | ≥2000 cycles |
| IFR26650P | 3.2V | 3400mAh | Ø26.5*H65.3mm | 3C | ≥2000 cycles |
| IFR26650P | 3.2V | 3800mAh | Ø26.5*H65.3mm | 2C | ≥2000 cycles |
| IFR26650P | 3.2V | 4000mAh | Ø26.5*H65.3mm | 2C | ≥2000 cycles |
| IFR40135P | 3.2V | 18.0Ah | Ø40.5*H135.3mm | 2C | ≥2000 cycles |
| IFR40135P | 3.2V | 20.0Ah | Ø40.5*H135.3mm | 2C | ≥2000 cycles |
| IFR46135P | 3.2V | 25.0Ah | Ø46.5*H135.3mm | 2C | ≥2000 cycles |
| LiFePO4 Battery (Lithium Iron Phosphate Battery)-Soft Pack | |||||
| Model | Nominal Voltage | Nominal Capacity | Dimension | Max. Discharge Rate | Cycle Life |
| IFP78133202 | 3.2V | 20.0Ah | T8.0*L133.5*W202.3mm | 1C | ≥2000 cycles |
| IFP08162227 | 3.2V | 26.0Ah | T8.5*L162.5*W227.3mm | 3C | ≥2000 cycles |
| IFP82141238 | 3.2V | 25.0Ah | T8.5*L141.5*W238.3mm | 0.5C | ≥2000 cycles |
| IFP09133202 | 3.2V | 25.0Ah | T9.0*L133.5*W202.3mm | 1C | ≥2000 cycles |
| IFP0914897 | 3.2V | 13.0Ah | T9.5*L148.5*W97.3mm | 3C | ≥2000 cycles |
| IFP09184165 | 3.2V | 30.0Ah | T9.5*L184.5*W165.3mm | 3C | ≥2000 cycles |
| IFP11133202 | 3.2V | 30.0Ah | T11.0*L133.5*W202.3mm | 1C | ≥2000 cycles |
| IFP12103354 | 3.2V | 67.0Ah | T12.5*L103.5*W354.3mm | 2C | ≥2000 cycles |
| LiFePO4 Battery (Lithium Iron Phosphate Battery)-Square Aluminum Shell | |||||
| Model | Nominal Voltage | Nominal Capacity | Dimension | Max. Discharge Rate | Cycle Life |
| IFP27135206 | 3.2V | 80Ah | T27.5*L135.5*W206.3mm | 1C | ≥2000 cycles |
| IFP27135250 | 3.2V | 100Ah | T27.5*L135.5*W250.3mm | 0.5C | ≥2000 cycles |
| IFP34135192 | 3.2V | 100Ah | T34.5*L135.5*W192.3mm | 1C | ≥2000 cycles |
| IFP34135214 | 3.2V | 100Ah | T34.5*L135.5*W214.3mm | 1C | ≥2000 cycles |
| IFP36130140 | 3.2V | 50Ah | T36.5*L130.5*W140.3mm | 0.5C | ≥2000 cycles |
| IFP36130150 | 3.2V | 50Ah | T36.5*L130.5*W150.3mm | 0.5C | ≥2000 cycles |
| IFP3914895 | 3.2V | 50Ah | T39.5*L148.5*W95.3mm | 0.5C | ≥2000 cycles |
| IFP42173166 | 3.2V | 135Ah | T42.5*L173.5*W166.3mm | 1C | ≥2000 cycles |
| IFP42173205 | 3.2V | 150Ah | T42.5*L173.5*W205.3mm | 0.5C | ≥2000 cycles |
| IFP50160119 | 3.2V | 100Ah | T50.5*L160.5*W119.3mm | 0.5C | ≥2000 cycles |
| IFP54174145 | 3.2V | 150Ah | T54.5*L174.5*W145.3mm | 1C | ≥2000 cycles |

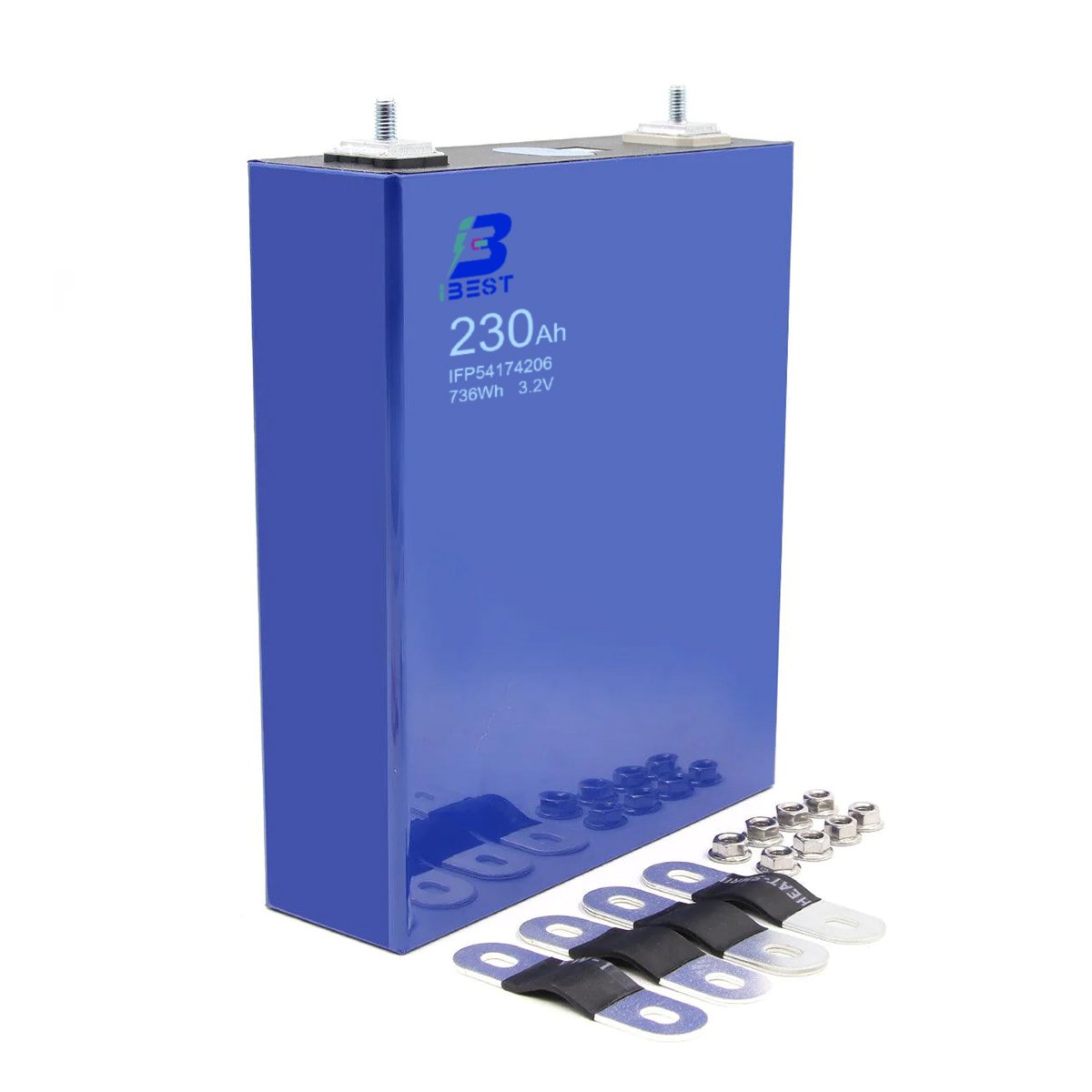

| IFP54174206 | 3.2V | 230Ah | T54.5*L174.5*W206.3mm | 1C | ≥2000 cycles |
| IFP71173204 | 3.2V | 280Ah | T71.5*L173.5*W204.3mm | 0.5C | ≥2000 cycles |
