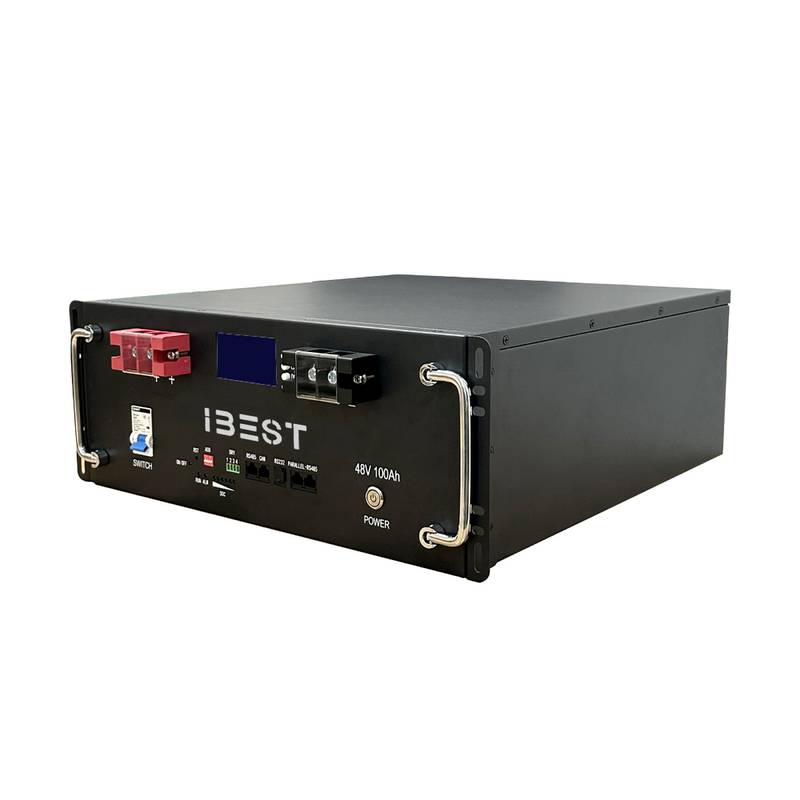

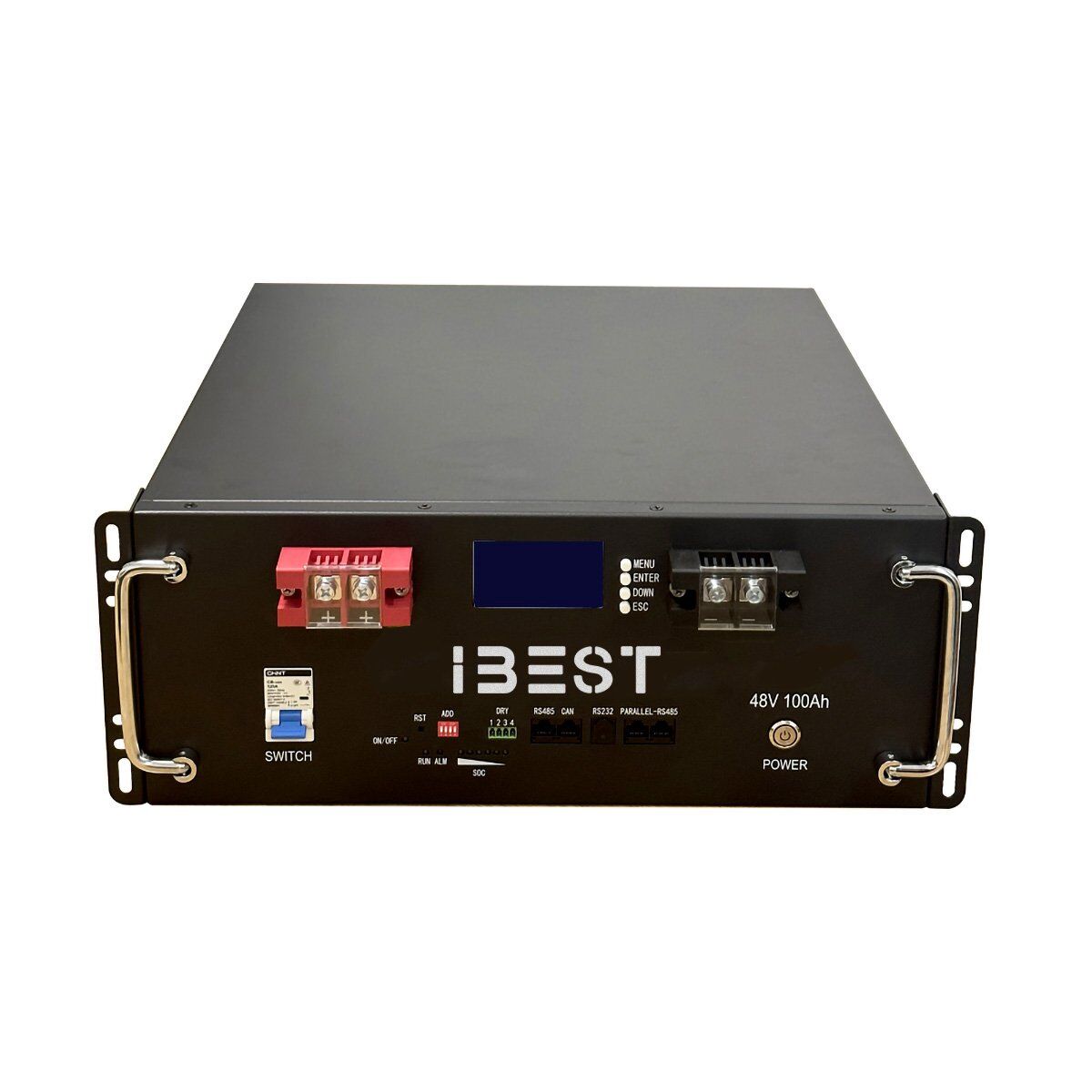

Server Rack Battery 48V/51.2V 100Ah 5.12kWh LiFePO4 Battery

Additional information

Product Details

Model	IBP-LFP48100-RB
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Rated Energy	5120Wh
Structure	16S1P
Max. Charge Voltage	58.4V
Discharge Cut-off Voltage	40V
Standard Charge Current	20A
Rapid Charge Current	100A
Max. Discharge Current	100A
Cycle Life	≥6000 cycles @ 80% DOD
Dimension	L485.0W442.0H177.0mm
Weight	Approx. 45KGS
Display	On-board LCD Screen
Operation Temperature	Charging: 0~50℃ Discharging: -20~60℃
Storage Temperature	-20~60℃
Certification	CE/RoHS/MSDS/UN38.3
Main Protection Function	Overcharge, Overdischarge, Overcurrent, Overheating, Short Circuit, Balance
Communicaion Function	RS485/RS232/CAN(Optional)
Case Material	Steel
Protection Rating	IP20
Lead Time	7-25 days, depending on stock and quantity.
Warranty	5 Years Product Warranty, 10 Years Design Life Warranty
Characteristic	• Modular Design • Standardized Sizing • Space Efficiency • Cooling and Ventilation • BMS and Monitoring • Integration with Power Systems • Long Cycle Life • Safety • Stability • High Discharge Rates • Wide Temperature Range • Minimal Maintenance • Environmental Friendliness • High Voltage Stability • Slow Self-Discharge • Variety of Applications
Applications	Data centers, Server rooms, Critical IT infrastructure, Solar energy storage, Backup power systems, UPS systems, Industrial equipment and more.
